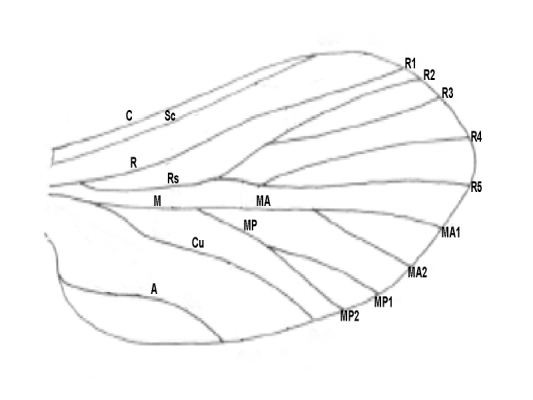

Wing Venation - Mayfly Generalized |
Insect wings have six major veins running from the base of the wing to its outer margin. Their primary function is to provide the wing with structural support. |
C - 1st longitudinal vein, costa (+) |
Sc - 2nd longitudinal vein, subcosta (-) |
R - 3rd longitudinal vein, radius (+) |
Rs - its major branch, radial sector (-) |
M - 4th longitudinal vein, media (+) |
MA - anterior branch of media (+) |
MP - posterior branch of media (-) |
Cu - 5th longitudinal vein, cubitus (+) |
A - 6th longitudinal vein, anal (+) |
Minor branches of these veins are subscripted, i.e. R1, R2, etc. |
As viewed dorsally, longitudinal wing veins are either convex (+) or concave (-). |
